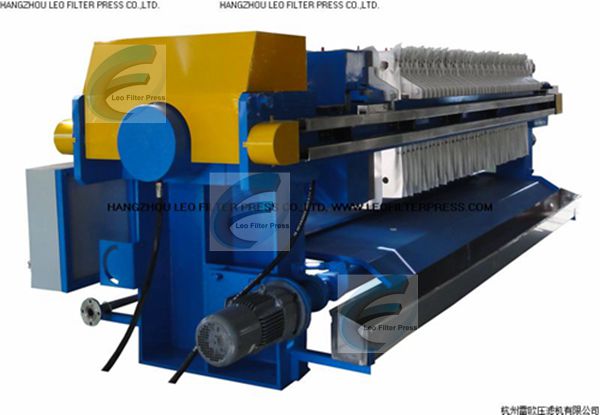

Membrane Filter Press Operation Instructions from Leo Filter Press

Membrane filter press is the updated model from the chamber filter press, it works in high membrane squeezing pressure, anticorrosive and easy for maintenance, now membrane filter press is widely used in various industries,such as medicine,food,beverage, chemical,coal etc.After membrane squeezing,the filter press cake will decrease its water content,if need drier filter cake, the membrane filter press will be the first choice.

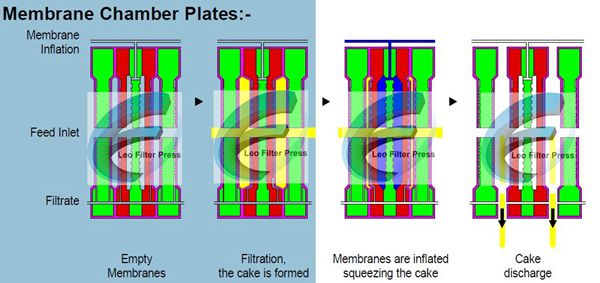

The main difference for membrane filter press and normal chamber filter press Is the membrane filter press have membrane filter plate which covered both sides by elastic membrane sheet,during membrane squeezing,the high pressure squeezing media will inlet to the membrane filter plate, the membrane sheet will be inflated to change the chamber volume,the filter cake will be squeezed at the same time,this membrane squeezing is the further dewatering of the filter cake, this operation increase filter press working efficiency.Compare with the traditional chamber filter press, the filter cake solid content increased twice times, less cost for filter cake transportation,all the dried filter cake also can be used again.
Leo Filter Press Membrane Filter Press Brief Instructions:
Max Membrane Squeezing Pressure: 20bar

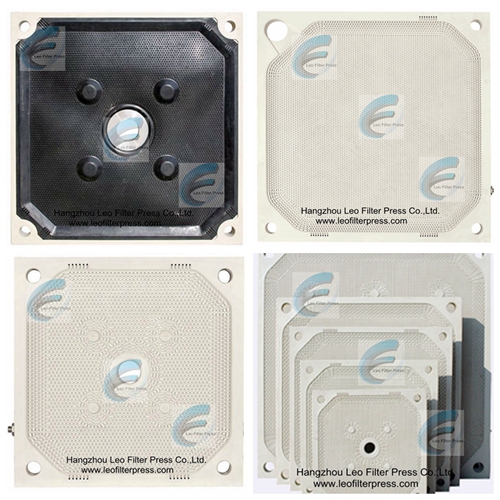

Membrane Filter Press Plate Material: PP(Polypropylene or various rubber material available)
Membrane Filter Plate Size availabe:400mmX400mm,630mmX630mm,800mmX800mm,1000mmX1000mm.1200mmX1200mm,1250mmX1250mm,1500mmX1500mm,1600mmX1600mm,1500mmX2000mm,2000mmX2000mm
Membrane Filter Press Controlling System: PLC system
