Small Filter Press for Maple Syrup Filtration from Leo Filter Press,Small Filter Press Machine Operation Instructions
Inquire or Request this information, Please E_mail: yankeeyang@vip.126.com
Small Filter Press for MapleSyrup Filtration from Leo Filter Press,Small Filter Press Machine OperationInstructions

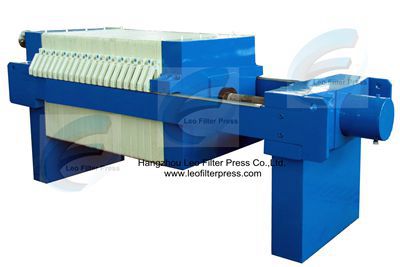

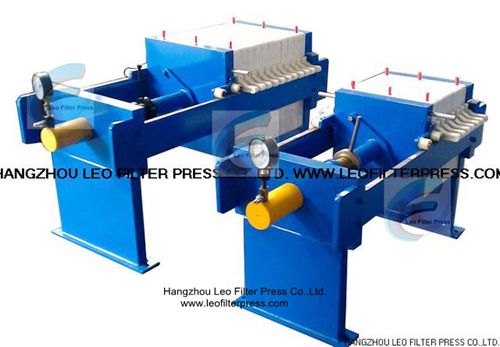

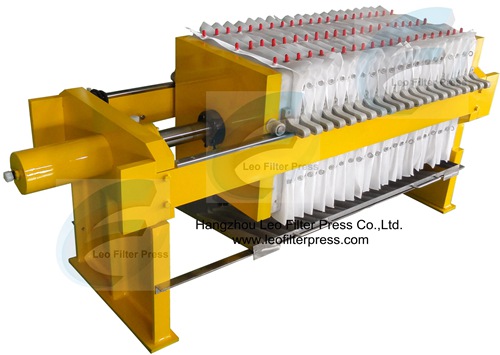

Leo Filter Press X400 series small size hydraulicfilter press is welcomed by filter press users who have small capacityfiltering tasks. Some Leo Filter Press user just use X400 series filter pressto be a special testing filter press machine with less cost for the wholefiltering system.
Leo Filter Press X400 Chamber Recessed Filter Press/MembraneFilter Press Instructions
1. All the filter press plates adopt patent mouldpressing filter plate producing technology, light but high working intensity,can work under high pressure with longer service time.
2. Special high quality membrane filter plate,canendure high membrane squeezing pressure and less moisture content aftermembrane squeezing.
3. The filter press frame is made from solid steel,which can support the total weight of filter press plates and the pressurecaused during filtering
4. Reasonable structure design, economic model forsmall capacity solid-liquid separation.
5. manual hydraulic closing ,easy operation and dailymaintenance, less repair cost
6. Can be used in various industries, also can be testing machine to collectfiltering specifications which will be the best reference for mid-size and bigsize filter presses purchasing project.
7. Special design offered by Leo filter Press: filtercake cart, drip tray, filtrate gutter etc,please show your special requirementsto Leo Filter Press sales engineers directly.
Filter Press Basic Design Specifications List for LeoX400 Chamber Filter Press
| Filter Press Model | Filtering Area (m2) | Filter Plate (pcs) | Chamber Volume (L) | External Size | Weight (kg) | |||
| X | A M | J1.0/400-U | K B | 1.0 | 5 | 15 | 1390X630X850 | 358 |
| X | A M | J1.6/400-U | K B | 1.6 | 7 | 24 | 1490X630X850 | 375 |
| X | A M | J2.0/400-U | K B | 2.0 | 11 | 30 | 1690X630X850 | 400 |
| X | A M | J2.5/400-U | K B | 2.5 | 13 | 37.5 | 1790X630X850 | 410 |
| X | A M | J3.0/400-U | K B | 3.0 | 15 | 45 | 1890X630X850 | 420 |
| X | A M | J4.0/400-U | K B | 4.0 | 21 | 60 | 2190X630X850 | 465 |
| X | A M | J5.0/400-U | K B | 5.0 | 27 | 75 | 2490X630X850 | 500 |
Leo Filter Press XG400 Membrane Filter PressDesign,Sizing and Operation Specification Data
| Filter Press Model | Filtering Area (m2) | Filter Plate(pcs) | Chamber Volume (L) | External Size | Weight (kg) | |||
| X | A M | JG1.0/400-U | K B | 1.0 | 5 | 15 | 1390X630X850 | 358 |
| X | A M | JG1.6/400-U | K B | 1.6 | 7 | 24 | 1490X630X850 | 375 |
| X | A M | JG2.0/400-U | K B | 2.0 | 11 | 30 | 1690X630X850 | 400 |
| X | A M | JG2.5/400-U | K B | 2.5 | 13 | 37.5 | 1790X630X850 | 410 |
| X | A M | JG3.0/400-U | K B | 3.0 | 15 | 45 | 1890X630X850 | 420 |
| X | A M | JG4.0/400-U | K B | 4.0 | 21 | 60 | 2190X630X850 | 465 |
| X | A M | JG5.0/400-U | K B | 5.0 | 27 | 75 | 2490X630X850 | 500 |
The upper mentioned specifications only for yourreference
Any modification of this filter press specification list will be informedseparately
For Leo Filter Press users please refer to your "XG400Membrane Filter Press Operation and Maintenance Manual" for more detailedinstallation,operation and maintenance information.
