LeoFilter Press Plate Filter Press Operation and Working SpecificationInstructions

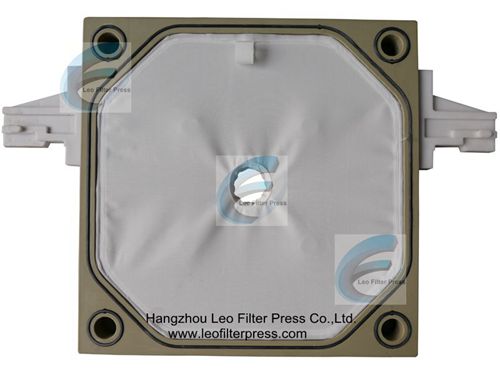

FilterPress Plate Size: 400mmX400mm gasketed type filter press plate
FilterPress Plate thickness: 50mm/60mm
GasketedPlate Quantity: please refer to ”Leo Filer Press Gasketed Plate Filter Press400 Basic Design and Working Specification List”
FilterPlate Chamber Tthickness: 20-25mm
Filteringtemperature endurable :30-70centi degree
Filtering pressure available: 6-10bar
FilterPress Closing Method: manual hydraulic operation/automatic hydraulic operation

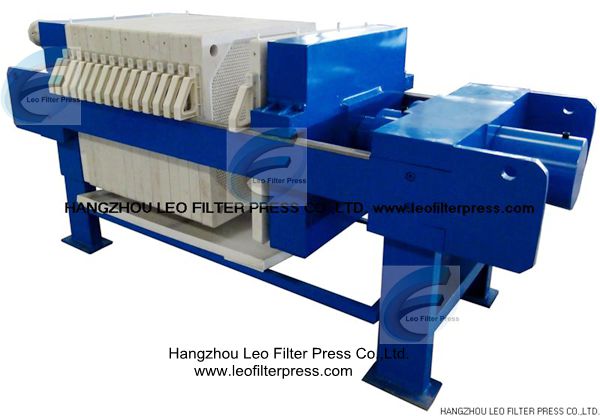

Leo FilerPress 400Gasketed Plate Filter Press BasicDesign and Working Specification List
| Filter Press Model | Filtering Area (m2) | Filter Plate (pcs) | Chamber Volume (L) | External Size | Weight (kg) | |||
| X | A M | JR1.0/400-U | K B | 1.0 | 5 | 15 | 1390X630X850 | 358 |
| X | A M | JR1.6/400-U | K B | 1.6 | 7 | 24 | 1490X630X850 | 375 |
| X | A M | JR2.0/400-U | K B | 2.0 | 11 | 30 | 1690X630X850 | 400 |
| X | A M | JR2.5/400-U | K B | 2.5 | 13 | 37.5 | 1790X630X850 | 410 |
| X | A M | JR3.0/400-U | K B | 3.0 | 15 | 45 | 1890X630X850 | 420 |
| X | A M | JR4.0/400-U | K B | 4.0 | 21 | 60 | 2190X630X850 | 465 |
| X | A M | JR5.0/400-U | K B | 5.0 | 27 | 75 | 2490X630X850 | 500 |
The upper mentioned specifications onlyfor your reference
For Leo Filter Press users plate refer toyour " Leo Filer Press 400 Gasketed Plate Filter Press Operation and Maintenance Manal" formore detailed Operation,installation,maintenance and problem shooting methods.
