Leo Filter Press Plate and Frame Filter Press Working Principle and Operation Instructions
Inquire or Request this information, Please E_mail: yankeeyang@vip.126.com
Leo Filter Press Plate and Frame Filter Press Working Principle and Operation Instructions
Plate and Frame Filter Press from Leo Filter Press,the Filter Press Manufacturer from China,offer Plate and Frame Filter Press and Plate Frame Parts
Plate and frame filter press is a traditional oldstyle filter press model,the filter press filtering part style is made from onefilter plate one filter frame then another one filter plate and another filterframe,the filter press cloths will cover on the filter press filter frame towork,now fewer and fewer plate and frame users after chamber filter press wasinvented to use.As the recessed chamber filter plate can endure higherfiltering pressure and filtering temperature.But some industries still useplate and frame filter press to do important product filtration. Though olddesign, filtering units divided into filter plate and filter frame will havegreat advantage when do some special material filtration.When need to shiftfilter cloth/filter plate ,this design will be perfect.

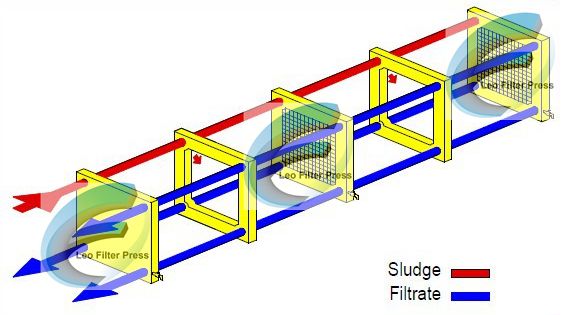

Leo Filter Press B900 Plateand Frame series Filter Press Working Principle
Leo Filter Press B900 Plateand Frame Filter Press Design and Sizing Specification Dada
| Filter Press Model | Filtering Area (m2) | Chamber Quantity (pcs) | Chamber Volume (L) | External Size | Weight (kg) | |||
| B | A M | 10/900-U | K B | 10 | 9 | 150 | 2972×1366×1380 | 2360 |
| B | A M | 15/900U | K B | 15 | 13 | 220 | 3216×1366×1380 | 2510 |
| B | A M | 20/900-U | K B | 20 | 18 | 297 | 3521×1366×1380 | 2610 |
| B | A M | 25/900U | K B | 25 | 22 | 363 | 3765×1366×1380 | 2800 |
| B | A M | 30/900U | K B | 30 | 27 | 462 | 4070×1366x1380 | 2950 |
| B | A M | 40/900-U | K B | 40 | 36 | 594 | 4619×1366×1380 | 3230 |
| B | A M | 50/900U | K B | 50 | 45 | 759 | 5168×1366×1380 | 3510 |
| B | A M | 60/900-U | K B | 60 | 53 | 891 | 5656×1366×1380 | 3760 |
| B | A M | 70/900-U | K -B | 70 | 62 | 1056 | 6205×1366×1380 | 4040 |
| B | A M | 80/900-U | K B | 80 | 71 | 1188 | 6754×1366×1380 | 4330 |
Thespecification only for reference during your filter press model sizing.
LeoFilter Press users please check your “Leo Filter Press B900 Plate and FrameFilter Press Operation and maintenance Manual’’ for detailed installation, working,operation and maintenance information.
