Hydraulic Filter Press,Small Size Manual Hydraulic Filter Press from Leo Filter Press,the Filter Press Manufacturer from China

 Hydraulic Filter Press,Small Size Manual Hydraulic Filter Press from Leo Filter Press,the Filter Press Manufacturer from China

Hydraulic Filter Press Operation and Design Instructions from Leo Filter Press

1. filter plate size:400mmX400mm,500mmX500mm

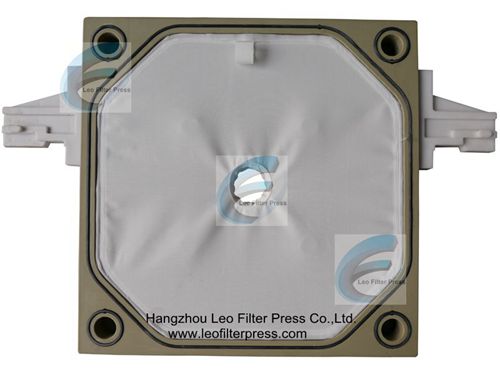

2. filter cloth type:gasketed type filter cloth with O-rings

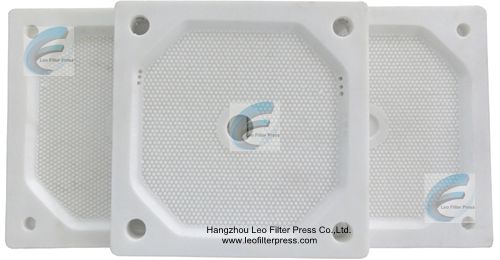

3. filter platedesign style: gasketed type filter plate

4. filter cakethickness:25mm

5. filtering areaavailable:1.0-6.0m2

6. filteringpressure endruable for gasketed type filter press:10bar

7. Filter Press closingmethod:manual hydraulic closing by a manual hydraulic hand pump,(automatichydraulic and electrical hydraulic available)

8. The filterpress frame design type:horizental side bar design with solid steelplates,compact frame design,less space occupation,longer service time

9. Filter press clothsealing ring material: nature rubber,Nitrile rubber,EPDM rubber,teflon rubber

10.Patent filtercloth installation design,less filtrate runing during filtration,max filtraterecycle after filtration.

11. Chamber volumeavaialbe for gasketed type filter presses:15L to 150L
